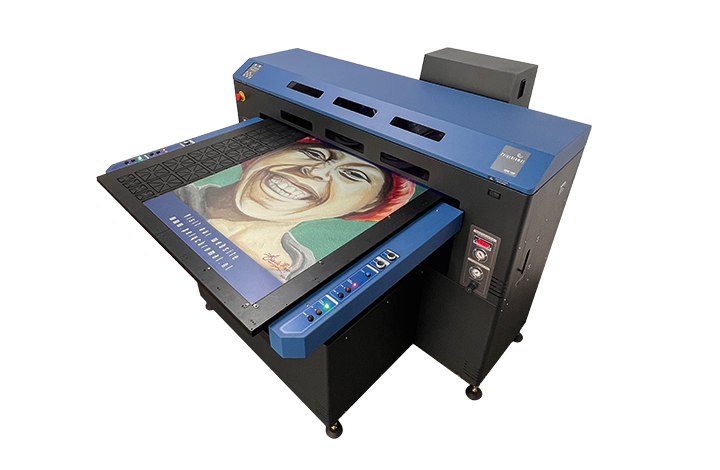

Español DSE-100 ALUPRINTERThe DSE-100 Aluprinter is a proven midrange digital flatbed inkjet printer. Developed to permanently anchor colourful images and sharply inscribed texts in anodised aluminium with a print resolution of up to 1440 x 1440 dpi. Suitable for use in combination with the Polychromal DuraColour inks which are placed in the printer by means of refillable cartridges.
|  |
Specifications
| Model | DSE-100 |
| Printing technology | Ink-jet (Micro Piezo Head) |
| Max. print area | 1000 x 1000 mm |
| Max. print height | 290 mm |
| DuraColour Inks | C, M, Y, K + Transparent |
| Printing resolution | 720 x 720 dpi / 1440 x 720 dpi / 1440 x 1440 dpi |
| Ink consumption | 25cc per SQM (full coverage) |
| Power requirements | AC 200V-240V ± 10%, 50/60 Hz ± 1 Hz, 15Amp |
| Interface | LAN network/ USB |
| Ambient conditions | Temperature 20°C tot 30°C, Humidity 45% tot 80% RH |
| RIP software | Kothari Print Pro |
| Table/bed | Heated and with vacuum (2 sections) |
Printing speed DSE-100 - Aluprinters
1440x1440 dpi, 1000 x 650 mm, uni 60 min, bi 46 min
1440x720 dpi, 1000 x 650 mm, uni 40 min, bi 28 min
720x720 dpi, 1000 x 650 mm, uni 34 min, bi 20 min
Consumables
Inks
The DSE aluprinters are suitable for use in combination with the DuraColour inks which print best digitally in DuraSeal and DuraPor plates and other anodised aluminium plates with an open pore structure. The inks are delivered in different volume packages with which the DSE-Aluprinters refillable cartridges can be filled.
DuraSeal
An all-round anodised aluminium base plate with open pores and a decorative surface structure. A barrier coating on the Duraseal baseplate ensures a long shelf life.
DuraPor
Anodised aluminium plates with open pores and a decorative surface structure. The DuraPor aluminium base plate is a fresh anodised aluminium plate for screen printing or digital printing.
